Helix

Ci3 C130.2-S3 MK2

HELIX Ci3 C130.2-S3 MK2: 130 mm 2-way performance coaxial speaker system with 3 Ω impedance and aluminium tweeter (pair).

€179.00
incl. VAT, plus Shipping

Pay in 12 interest-free instalments of €14.92. Choose Klarna at checkout.

  • In stock Delivery within Germany in 2–4 working days
  • Expert advice
Description

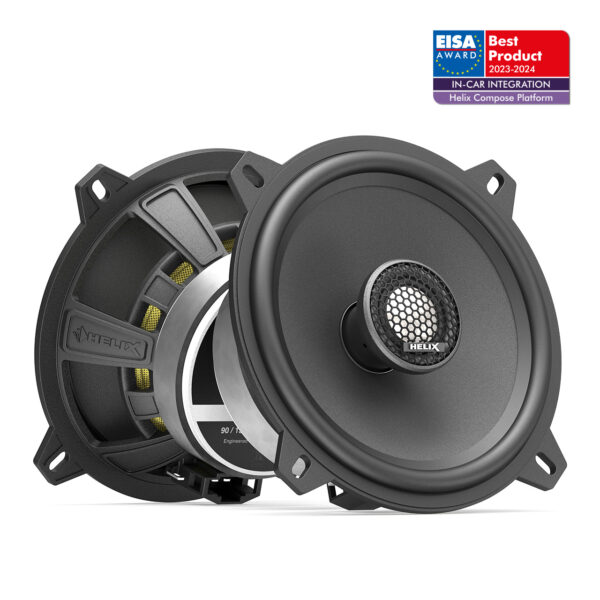

HELIX Ci3 C130.2-S3 MK2

130 mm 2-way performance coaxial speaker system with 3 Ω impedance and aluminium tweeter (pair)

Description

The Ci3 C130.2-S3 MK2 is a 130 mm 2-way performance coaxial system with a Cenosphere-coated paper cone and an aluminium dome tweeter with neodymium magnet. The integrated crossover (6 dB high-pass) and the ProConnect terminal allow quick installation – with conventional speaker cables or plug & play via the optional WireKits.

The HELIX COMPOSE i3 series is the price/performance highlight of the COMPOSE family: high-quality components and smart engineering deliver a first-class sound experience. Impedances are perfectly matched to HELIX and MATCH amplifiers, and COMPOSE-exclusive mechanical technologies such as FlexMount, ProConnect and WireKits make the speakers true problem solvers during installation.

Technical data

  • Power handling RMS / max.: 90 / 135 W
  • Frequency range: 80 Hz - 25,000 Hz
  • Impedance: 3 Ω
  • Sensitivity (SPL): 92 dB @ 2.83V / 1m; 88 dB @ 1W / 1m
  • Outer diameter: 130.0 mm
  • Mounting diameter: 116.5 mm
  • Mounting depth: 55.4 mm
  • Midbass – Impedance: 3 Ω
  • Midbass – DC resistance (Re): 3.0 Ω
  • Midbass – Resonance frequency (Fs): 92 Hz
  • Midbass – Mechanical Q (Qms): 2.76
  • Midbass – Electrical Q (Qes): 0.90
  • Midbass – Total Q (Qts): 0.68
  • Midbass – Compliance (Cms): 374 µm/N
  • Midbass – Equivalent volume (Vas): 4.9 L
  • Midbass – Force factor (B*I): 3.8 Tm
  • Midbass – Effective cone area (Sd): 97 cm²
  • Midbass – Moving mass (Mms): 7.6 g
  • Midbass – Mechanical resistance (Rms): 1.60 kg/s
  • Midbass – Voice coil diameter: 25 mm
  • Midbass – Voice coil winding height: 10.5 mm
  • Midbass – Max. linear excursion (Xmax): +/- 3.2 mm
  • Tweeter – Voice coil diameter: 20 mm
  • Features tweeter: aluminium dome and neodymium magnet
  • Features midbass: Paper with Cenosphere coating and ProConnect terminal
  • Features crossover: Integrated, 6 dB high-pass
  • Compatibility: WireKits

Scope of delivery

  • 2 × Ci3 C130.2-S3 MK2
  • 1 × mounting material

Note

Supplied as a pair (2 pieces).

Specifications
Power handling RMS / max.90 / 135 W
Frequency range80 Hz - 25,000 Hz
Impedance3 Ω
Sensitivity (SPL)92 dB @ 2.83V / 1m; 88 dB @ 1W / 1m
Outer diameter130.0 mm
Mounting diameter116.5 mm
Mounting depth55.4 mm
Midbass – Impedance3 Ω
Midbass – DC resistance (Re)3.0 Ω
Midbass – Resonance frequency (Fs)92 Hz
Midbass – Mechanical Q (Qms)2.76
Midbass – Electrical Q (Qes)0.90
Midbass – Total Q (Qts)0.68
Midbass – Compliance (Cms)374 µm/N
Midbass – Equivalent volume (Vas)4.9 L
Midbass – Force factor (B*I)3.8 Tm
Midbass – Effective cone area (Sd)97 cm²
Midbass – Moving mass (Mms)7.6 g
Midbass – Mechanical resistance (Rms)1.60 kg/s
Midbass – Voice coil diameter25 mm
Midbass – Voice coil winding height10.5 mm
Midbass – Max. linear excursion (Xmax)+/- 3.2 mm
Tweeter – Voice coil diameter20 mm
Features tweeteraluminium dome and neodymium magnet
Features midbassPaper with Cenosphere coating and ProConnect terminal
Features crossoverIntegrated, 6 dB high-pass
CompatibilityWireKits
In the box
2 × Ci3 C130.2-S3 MK2 1 × mounting material
Notes
Manufacturer part no.: CI22513 Supplied as a pair (2 pieces).
Manufacturer information
Manufacturer name and address
Audiotec Fischer GmbH
Hünegräben 26-28
57392 Schmallenberg
Deutschland
contact@audiotec-fischer.com
www.audiotec-fischer.de
